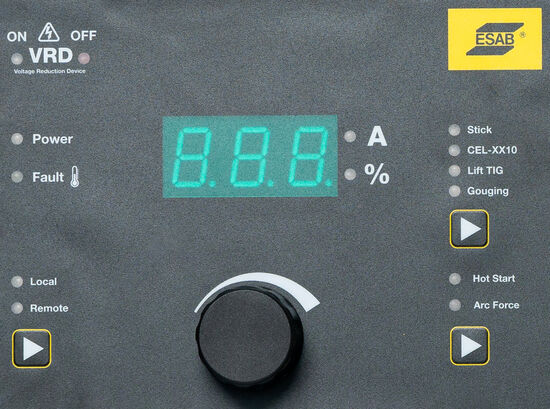

- • The intuitive control panel of the ES 410iC makes it easy to optimize settings, reducing the time taken for achieving the best weld characteristics
- • Equipped with Hot Start and Arc Force with the possibility to adjust parameters during welding. Hot Start helps to avoid starting problems while Arc Force sets the intensity of the arc for improved weld quality
- • Built-in Anti-Stick function to prevent the electrode from getting accidentally stuck in the puddle
- • Wide mains voltage tolerance allows for stable welding
- • Inverter controlled for high efficiency and low power consumption
- • Excellent welding performance with all types of electrodes including Cellulosic
Fabricator ES 410iC
Fabricator ES 410iC

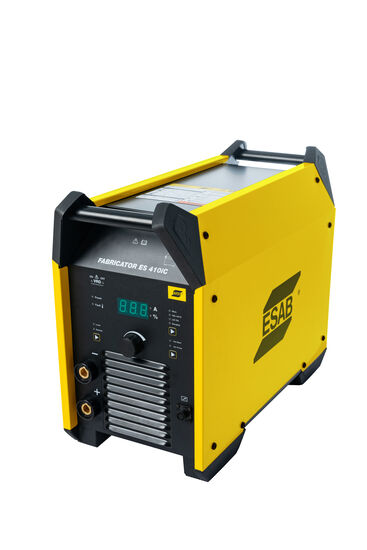

Fabricator ES 410iC is a heavy-duty inverter-controlled power source for MMA (Stick) welding, TIG (live-TIG) welding and CC Carbon-Air Arc Gouging.
The Fabricator ES 410iC is built to withstand rugged use making it a perfect solution for industrial usage. Ideal for heavy industries using all types of electrodes, including Cellulosic.
- Category:Machine
- • GTAW (TIG)
- • SMAW/MMA (Stick)
- • CAC-A – Air Carbon Arc Cutting
- • GTAW-DC (TIG DC)
- • Civil Construction
- • Pipe Workshops
- • Pressure Vessels
- • Ship and Offshore Yards
- • Industrial and General Fabrication
- • 10 X 20 cm
- • 100 X 200 cm
| Specifications | |
|---|---|
| Voltage | 380-400-415-440 V , 3 Φ, 50/60 Hz |
| Welding Output | 400 A @ 60 % Duty Cycle 310 A @ 100 % Duty Cycle |
| Setting Range SMAW/MMA (Stick) GTAW (TIG) |
30 - 410 A 10 - 410 A |
| Open Circuit Voltage | 76 (15) V |
| Efficiency at Maximum Current | 86 % 89 % |
| Fuse Slow | 32 A |
| Operating Temp | -10 - +40 °C |
| Enclosure Class | IP23S |
| Certification | CE, Non-CE |
| Dimensions, L x W x H | 525 x 280 x 475 mm |
| Weight | 35.2 kg |
- • The intuitive control panel of the ES 410iC makes it easy to optimize settings, reducing the time taken for achieving the best weld characteristics
- • Equipped with Hot Start and Arc Force with the possibility to adjust parameters during welding. Hot Start helps to avoid starting problems while Arc Force sets the intensity of the arc for improved weld quality
- • Built-in Anti-Stick function to prevent the electrode from getting accidentally stuck in the puddle
- • Wide mains voltage tolerance allows for stable welding
- • Inverter controlled for high efficiency and low power consumption
- • Excellent welding performance with all types of electrodes including Cellulosic
